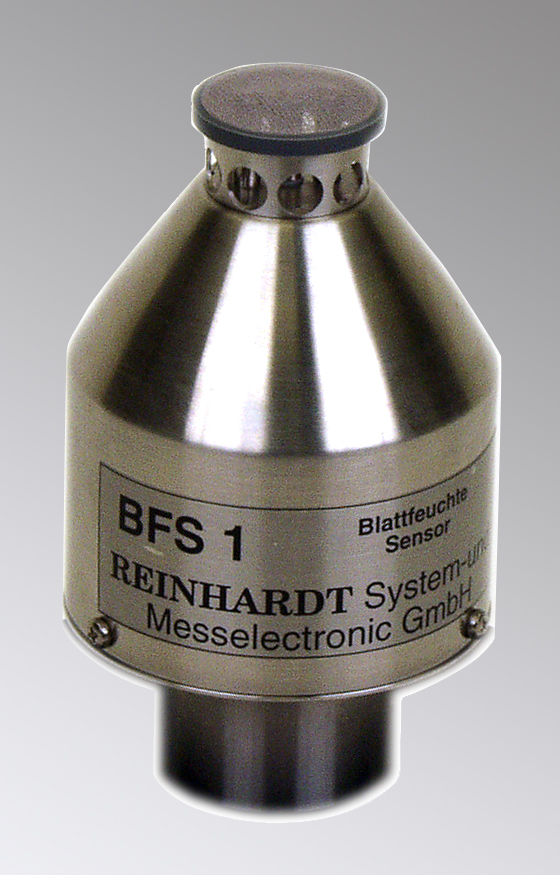

Sensor for discerning leaf moisture
The sensor base is made of high quality steel. There are three analog inputs for connecting other sensors (voltages between 0 and 4.095 Volt). We also offer a global radiation sensor, an UV-sensor or a lux sensor (light intensity). Data are transmitted via digital, serial interfaces (RS232; RS422 or USB are options). The combined sensor can be expanded with
WLAN or
GSM-module for long-distance data transmission. With a REINHARDT-
TCP/IP-module data transmission is available via an existing network. Use the
mobility package for secure transport.
Its comfortable menu-driven software can be used with MS WINDOWS® (from
versions 2000, NT, XP, VISTA to 7). Versions for WINDOWS® 3x or MS DOS®
are still available. Load our brochure under
esenpro.pdf for more information about the sensor and the software. Connection with one 4wire connection in a plug and play procedure. You will find the manual under
sens_m_e.pdf.
Current consumption: 90 mA at 18 V, operation voltage 4-28 V, comes without
power supply and cabling
Dimensions: height 170 mm, weight 1000 g
