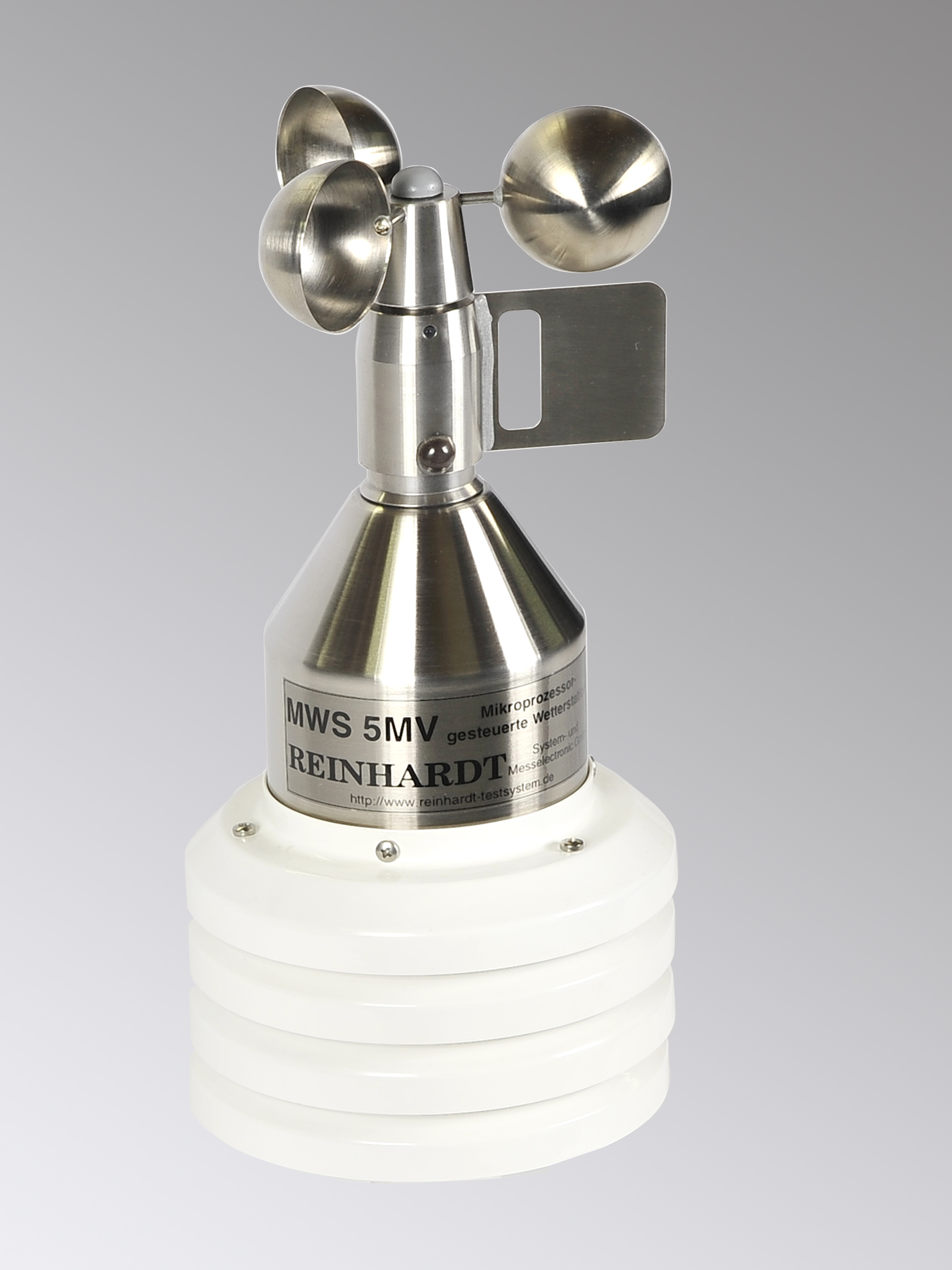

Weather station with 5 sensors and datalogger
measures temperature, relative humidity, dewpoint, barometric pressure, wind speed (incl. wind peak, average wind and wind chill) and wind direction (incl. prevalent wind direction). An optional
heating is for operation for all seasons (snow and ice) of the wind speed and wind direction sensors. Global radiation (solar energy) and precipitation are options. We also offer an UV-sensor, a leaf moisture or a lux sensor (light intensity). The high quality steel housing holds all the sensors and the complete evaluation electronics. There are three analog inputs for connecting other sensors (voltages between 0 and 4.095 Volt). The weather station stores all these values with its data logger so that they can be retrieved at any time. Data are transmitted via digital, serial interfaces (RS232; RS422 or USB are options). The weather station can be expanded with
WLAN or
GSM-module for long-distance data transmission. With a REINHARDT-
TCP/IP-module data transmission is available via an existing network.
Use the
mobility package for secure transport.
Its comfortable menu-driven software can be used with MS WINDOWS® (from
versions 2000, NT, XP, VISTA to 7). Versions for WINDOWS® 3x or MS DOS®
are still available. Load our brochure under
emwpro.pdf for more information about the weather station and the software. Load the manual of the weather software under
weather32.pdf. Connection with one 4wire connection in a plug and play procedure.
For technical data please see our
specifications. You will find the manual under
mws5m_8m_e.pdf.
