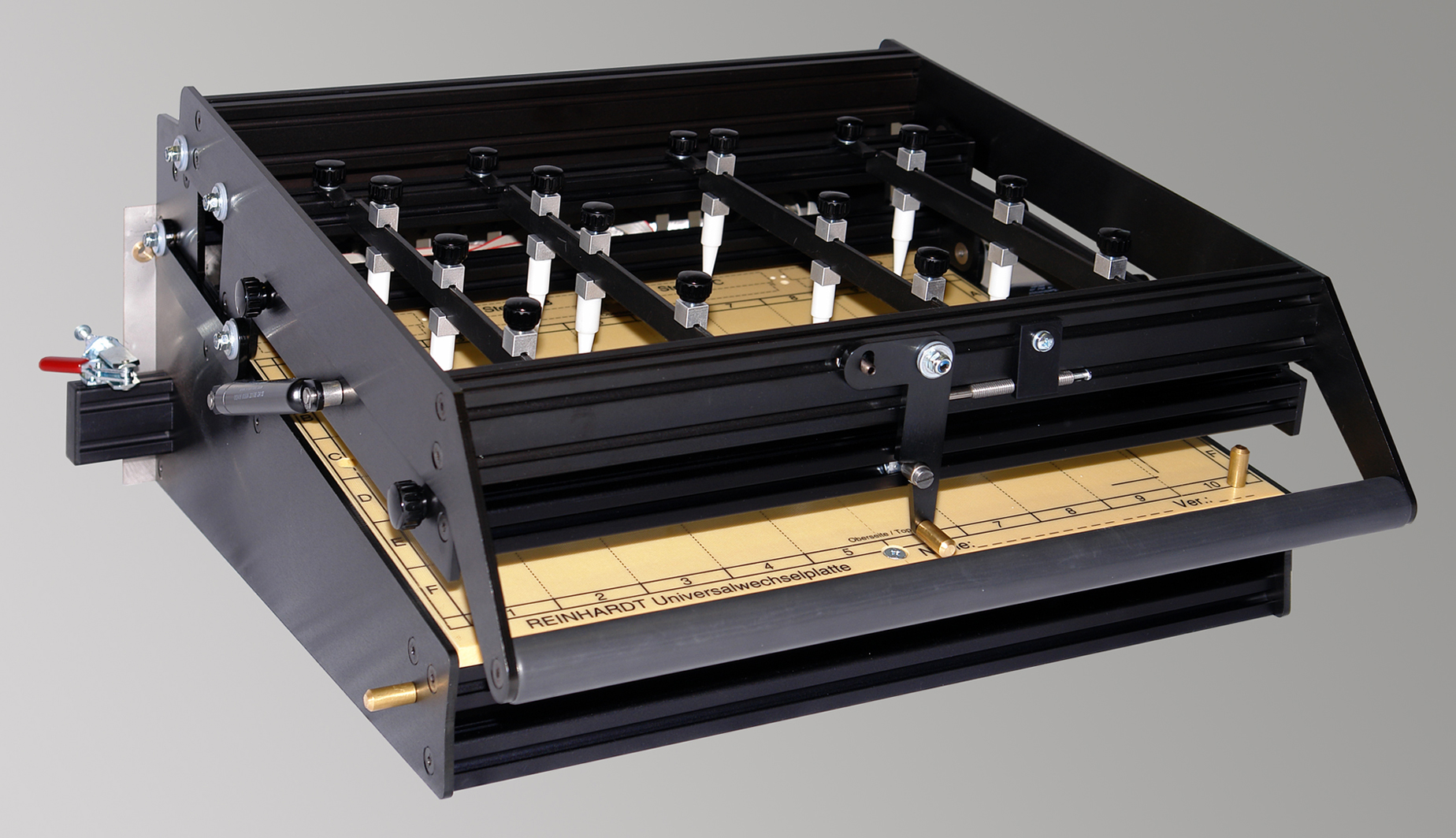

Manual Exchange Fixture Type 145A-3

1.498,00 EUR (Net)*

plus shipping costs

Piece(s)

Brochure (485.86 KB)
Salient Features (1.61 MB)

for up to 500 contact pins, contact pressure up to 1,000 N, working area 360 x 230 mm

Dimensions: 49 x 50 x 16.5 cm, weight: 13.7 kg
Working area 360 x 230 mm
max. 500 spring contact pins
Manual test fixture, sloping working area
For both In-circuit- and Functional test
High quality ball bearings at the 8 fulcrums
Very long durability
Good access

As the universal exchange plates can be changed easily, you only need new plates for a new test fixture. This is why this fixture system is so cost-effective. Both exchange plates are sized 380 x 297 x 8 mm. The upper exchange plate comes with 15 retention pins mounted to 5 receiver rails, the lower exchange plate comes with 4 connectors.

Productvideo

* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
