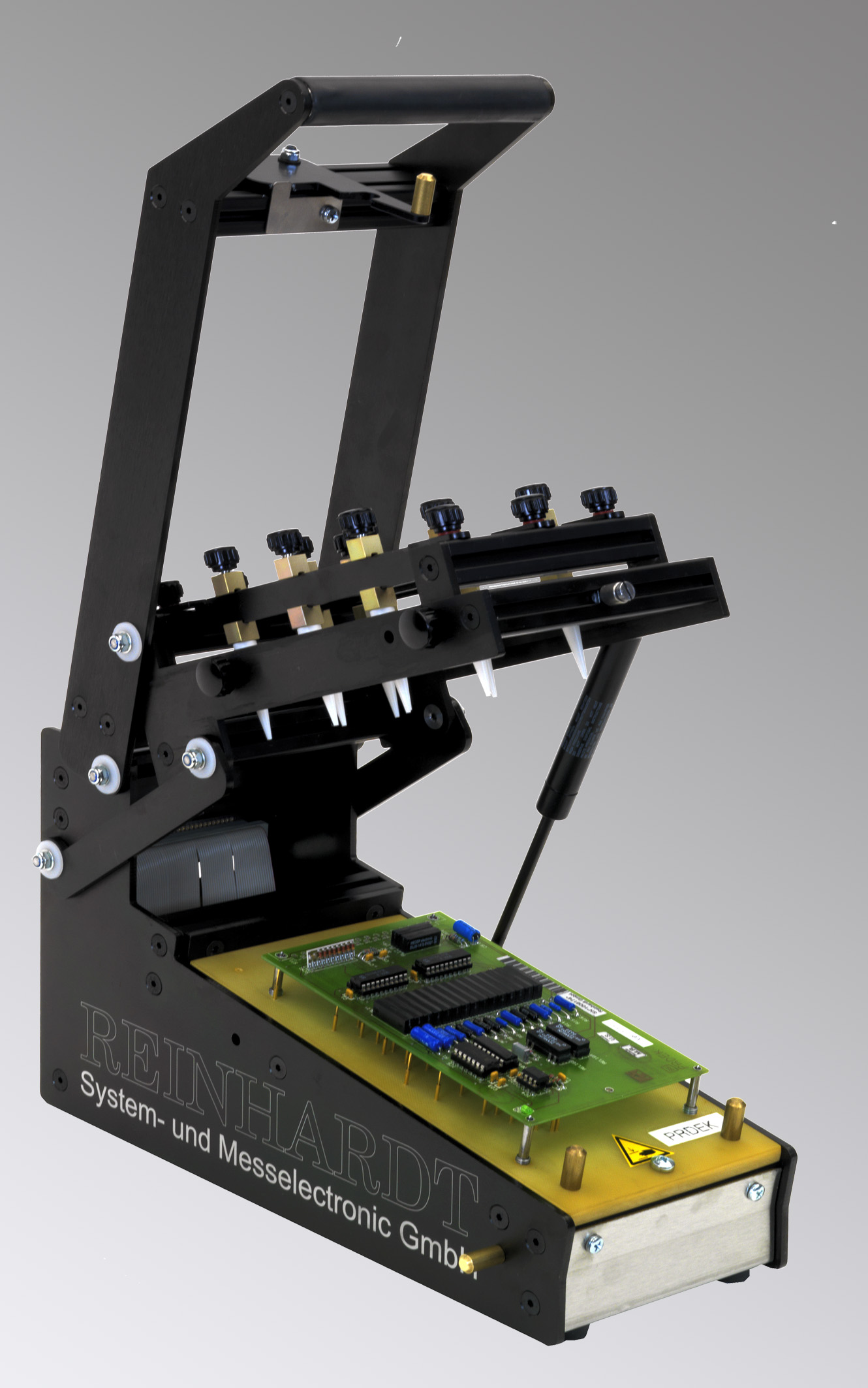

Manual Test Fixture Type 105A-2

978,00 EUR (Net)*

plus shipping costs

Piece(s)

Brochure (485.26 KB)
Salient Features (836.23 KB)

for up to 500 contact pins, contact pressure up to 1,000 N, working area 100 x 172 mm

Dimensions: 16 x 40.5 x 16.5 cm, weight: 6.2 kg

Manual test fixture, sloping working area
For both In-circuit- and Functional test
Highquality ball bearings on the 8 fulcrums
High accuracy
Very long durability
Little effort
Good access

This manual fixture is ideal for contacting electronic PCBs in order to program EEPROMs, Flashes etc. Since it is small and has a very small useable area, it requires only little space in the working area. As the universal exchange plates can be changed easily, you only need new plates for a new test fixture. This is why this fixture is so cost-effective. The upper retention exchange box (incl. 9 retention pins, mounted to 3 receiver rails) can easily be exchanged for another box for the universal fixture or for a box for solder defects or polarity test.

Size of the exchange plate: 119 x 230 x 8 mm
