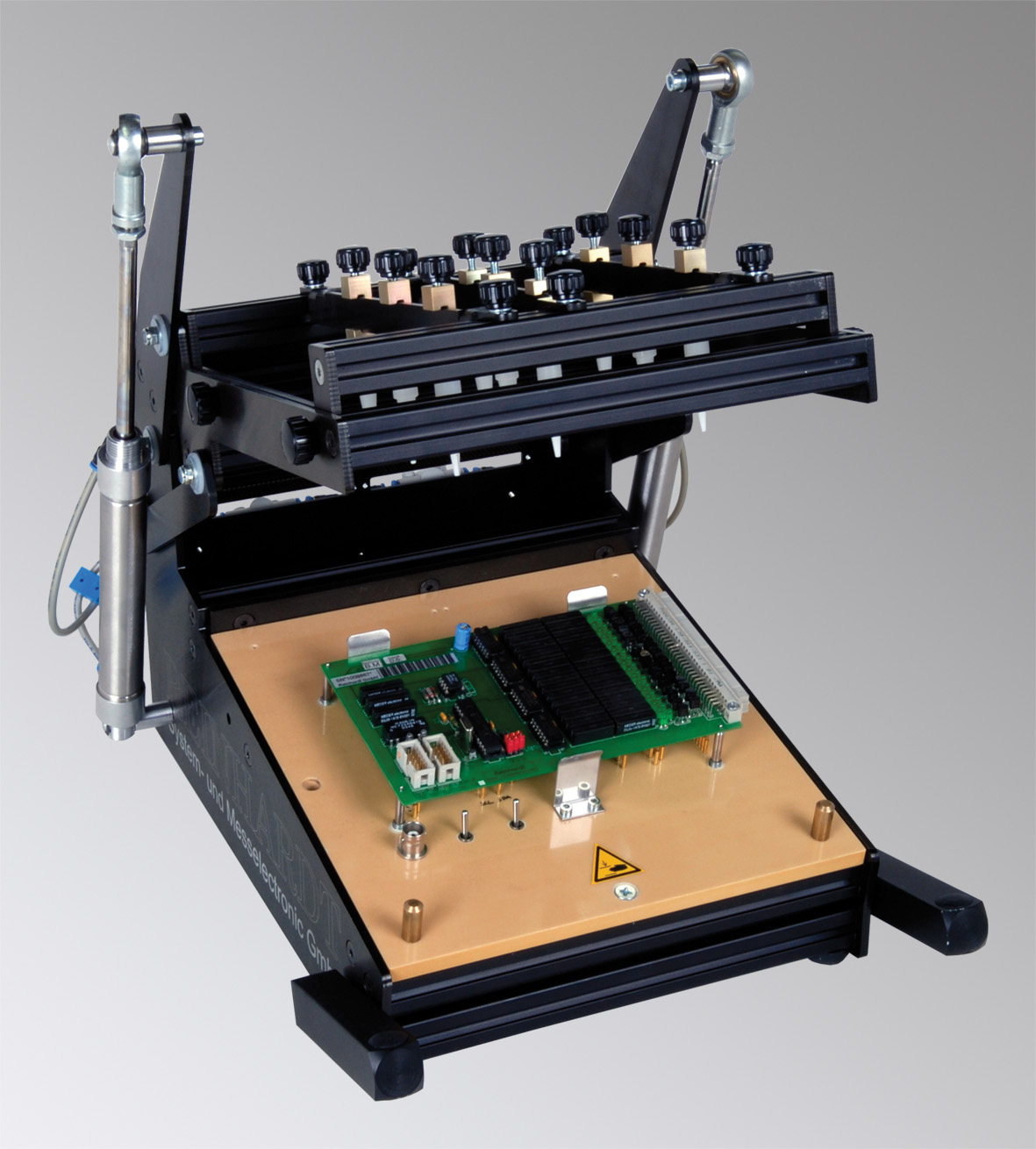

Pneumatic Test Fixture Type 125AP

1.900,00 EUR (Net)*

plus shipping costs

Piece(s)

Brochure (485.26 KB)
Salient Features (836.23 KB)

for up to 500 contact pins, contact pressure up to 1,000 N, working area 191.5 x 172 mm

Dimensions: 30 x 40.5 x16.5 cm, weight: 7.4 kg

Pneumatic test fixture, sloping working area
For both In-circuit- and Functional test
Two-hand operation (4 keys - security of the operator)

As the universal exchange plates can be changed easily, you only need new plates for a new test fixture. This is why this fixture system is so cost-effective. The upper retention exchange box (incl. 12 retention pins, mounted to 3 receiver rails) can easily be exchanged for another box for the universal fixture or for an optional box for solder defects or polarity test.

Size of the exchange plate: 217.6 x 230 x 8 mm

* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
