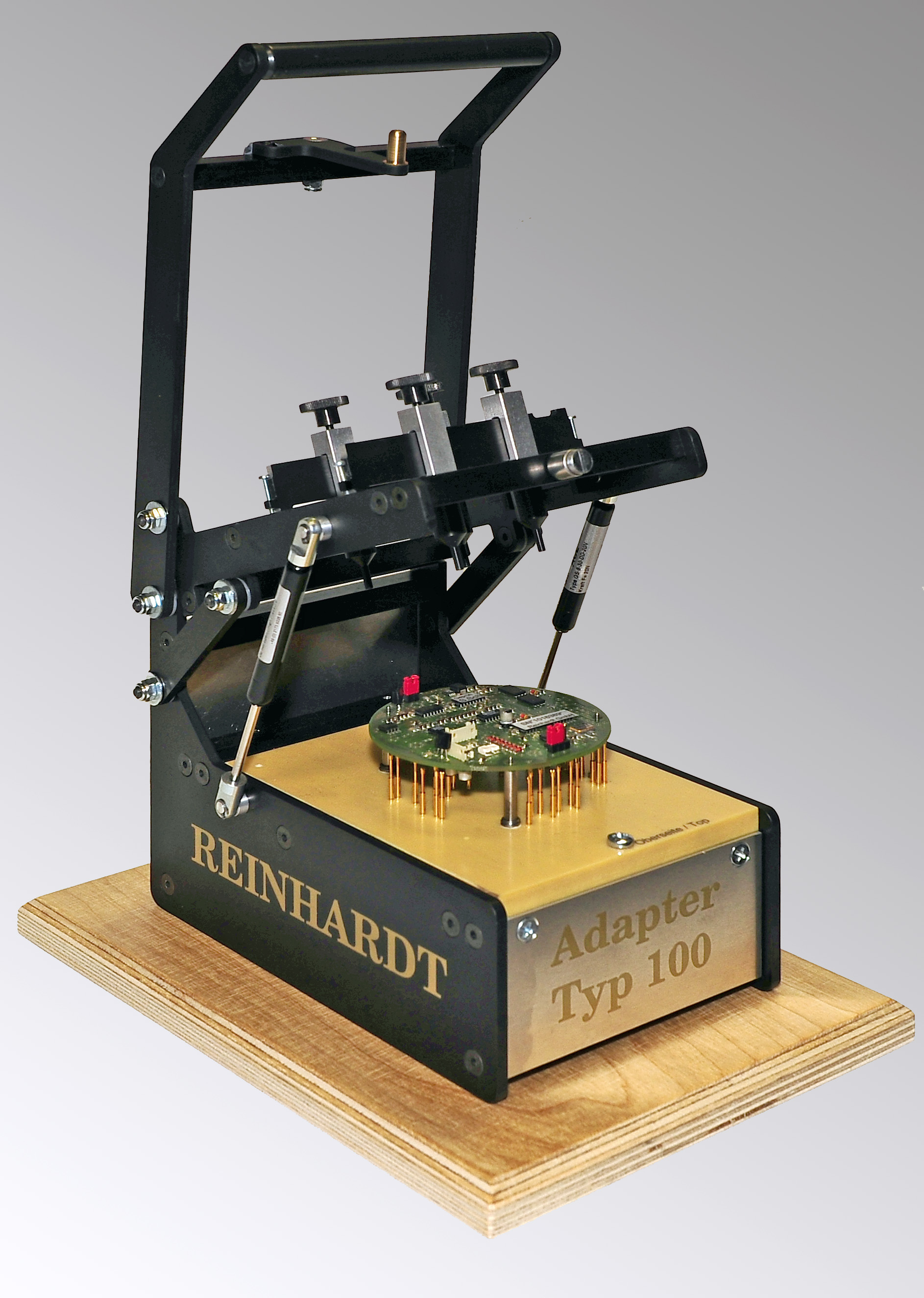

Manual Test Fixture Type 100B






890,00 EUR (Net)*


plus shipping costs

Piece(s)

Brochure (4.78 MB)
Salient Features (4.89 MB)

up to 200 contact pins, working area: 95 x 95 mm



Dimensions: 13 x 23 x 14.5 cm, weight: 1.8 kg, preferably for contacting electronic PCBs, in order to e.g. program EEPROMS, Flashes etc.
  • Manual test fixture
  • Horizontal working area
  • For both In-circuit- and Functional test
  • Little effort
  • Good access
  • Highquality ball bearings
  • High accuracy
  • Very long durability

This manual fixture has the smallest useable area and requires only little space in the working area. As the universal exchange plates can be changed easily, you only need new plates for a new test fixture. This is what makes this fixture so cost-effective. The upper retention exchange box (incl.6 retention pins, mounted to 2 receiver profiles) can easily be exchanged for another box for the universal fixture or for a box for solder defects or polarity test.

Size of the exchange plate: 104 x 134 x 8 mm




* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
